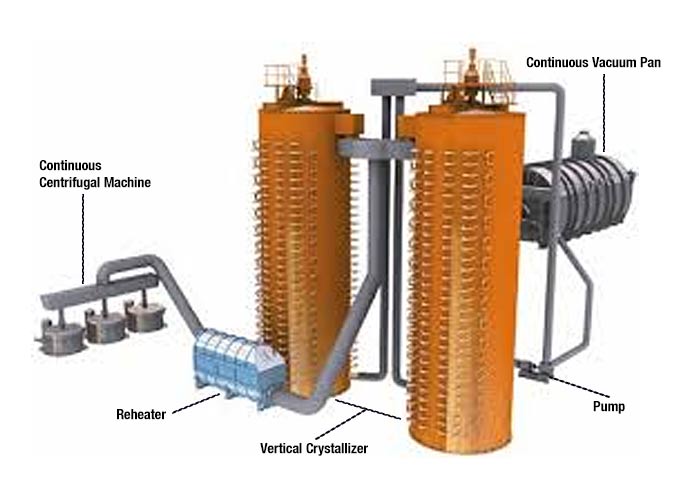

Vertical Crystallizer & Massecuite Reheater

MAXIMIZE MOLASSES EXHAUSTION AND ENSURE BEST MASSECUITE QUALITY FOR OPTIMUM CENTRIFUGAL PERFORMANCE

CHARACTERSTICS
– A cost–effective solution to maximize capacity
– Low maintenance, compact footprint
– Outstanding performance

A COST-EFFECTIVE SOLUTION FOR MAXIMIZING CAPACITY
– Purity drop achieved in molasses is between 5 and 10 points
– Low electricity consumption: 0.03 to 0.05 kWh per ton of cane

LOW MAINTENANCE REQUIREMENTS/SMALL FOOTPRINT
– 100% seamless tubes fixed
– 100% tubes junction welds outside the equipment
– The system is clean

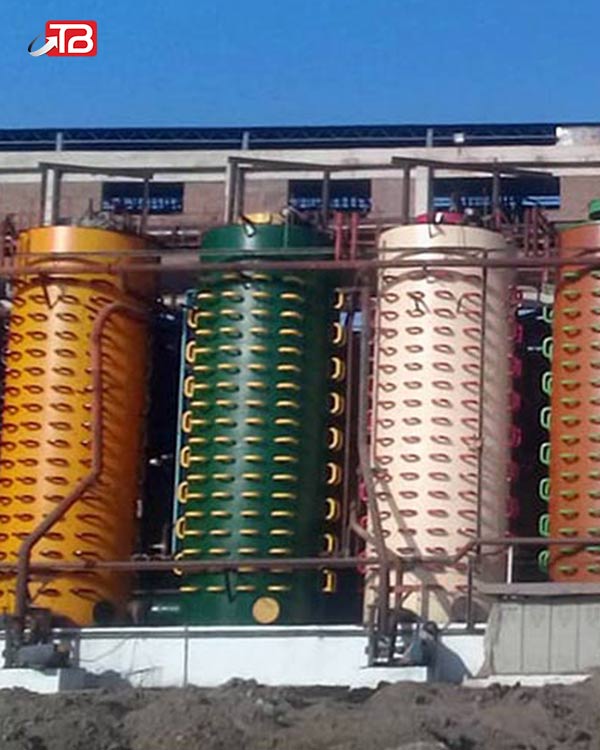

– Stand-alone equipment installed on exterior civil base

OUTSTANDING PERFORMANCE
– Centre shaft suspended in heavy duty spherical roller bearing
– High heat transfer coefficient and low temperature difference between massecuite and water
– Maximum exhaustion by combined control of massecuite shear rate and control of temperature
– High height to diameter ratio in order to enhance the plug-flow effect
– S/N ratio from 1.1 to 1.9 m2/m3
– Reheater of high heating surface (up to 1,400 m2) and optimized upstream flow characteristics with no dead zone, designed to avoid sugar losses and any inverted or burnt sugar
