Continuous Centrifugal Machine
The ideal balance between high capacity and optimized process performance
– Ultimate and globally–recognized technologies
– High capacity and robustness
– Easy operation and maintenance
CHARACTERSTICS
– Large opening trapdoor
– High and low purity run off separation
– All parts in contact with massecuite in stainless steel
– Integrated remelting configuration (magma or liquid discharge)
– Vibration monitoring
– Intermediate basket openings
– High open area working screen
– Most of the mother liquor is separated
– At the pre–separation stage
– Increased throughput
– Reduced wash water consumption and remelted sugarÂ
– Lower energy consumption per ton of massecuiteÂ
AVAILABLE CAPACITIES
Depending on massecuite characteristics and machine configuration
Model
A
B
C
SK1100
16
08
04
C MAX
14
SK1250
25
17
AVAILABLE CAPACITIES
Specification
A MASSACUITE
B MASSACUITE
C MASSACUITE
Motor Power
75 kW
75 kW
75 kW
Maximum Speed
1650 rpm
1800 rpm
2000 rpm
Maximum Capacity
16 Ton/hr
8 Ton/hr
4 Ton/hr
Basket Angle
30 Degrees
30 Degrees
34 Degrees

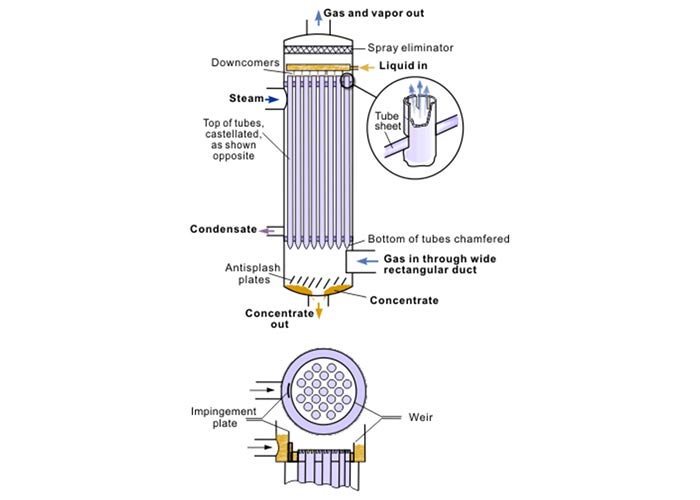

Juice Distribution System
Flow of Juice coming through the juice distribution tray holes is divided into 7 streams and directed to the surrounding distribution. Uniform juice distribution over the whole tubes Juice distribution in a thin film on the tube walls for
Steam Distribution system during heat exchange
Skirt protects the calandria Recovery of non–condensable Offset calandria to ensure uniform steam distribution over the whole surface.Â
